Precisio® – High Resolution Tomographer The unique Tomographer for fully customized eye surgery and highly detailed diagnosis.

iVIS Technologies - Italy
Precisio
Precisio

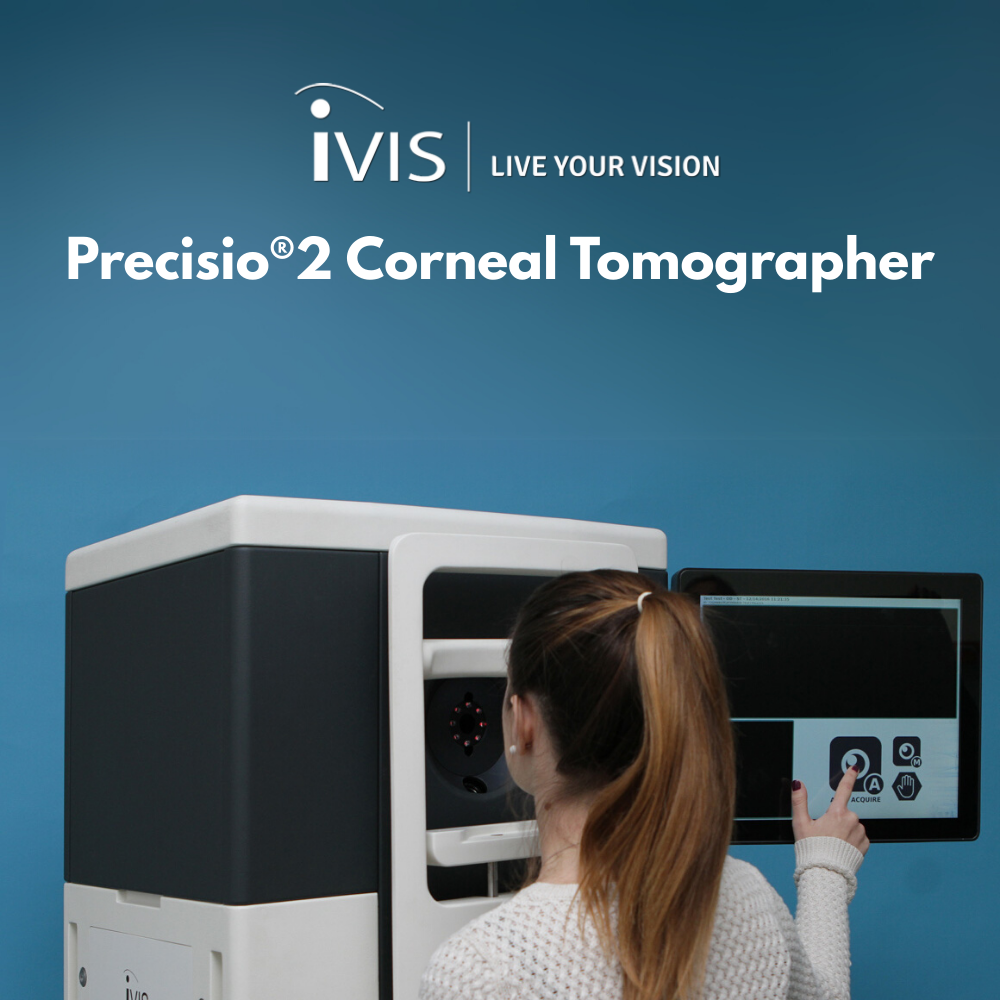

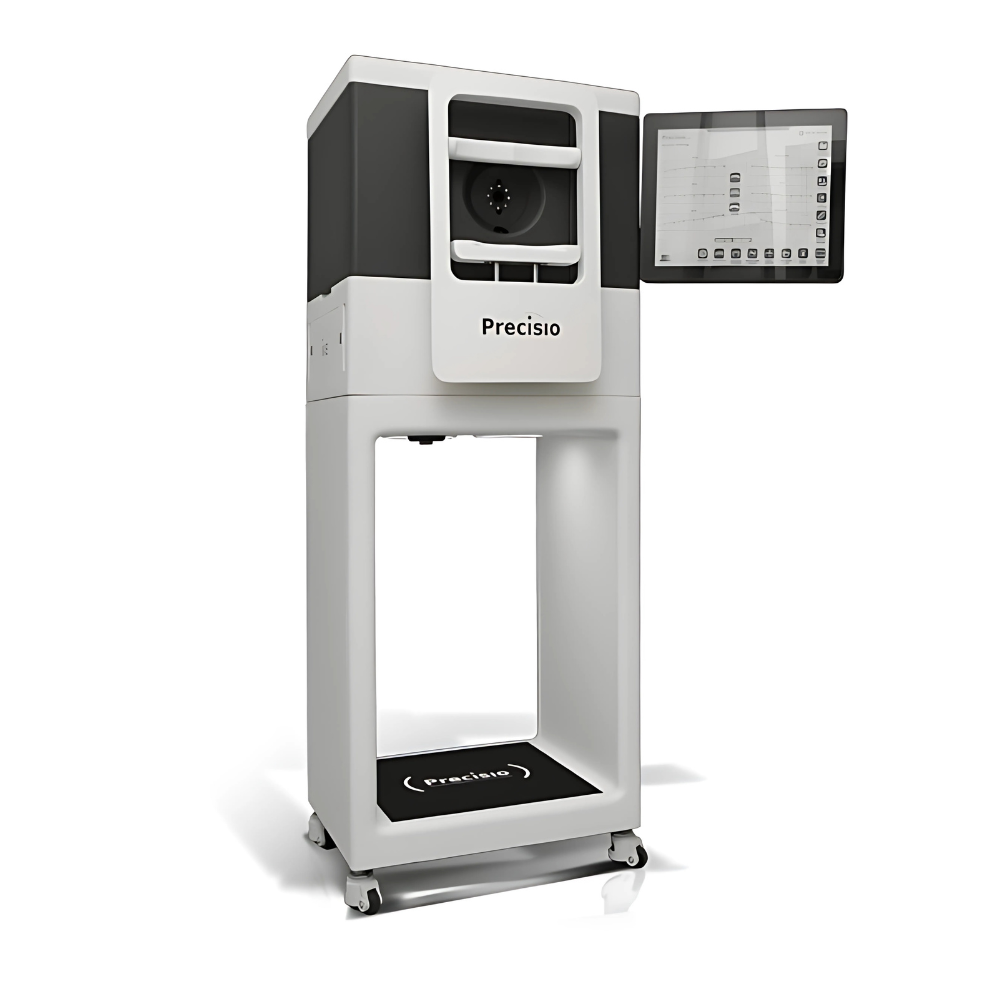

Designed in-house and fully integrated into the iVis Suite™, Precisio®2 is iVis’ second generation high resolution Corneal Tomographer. It delivers true HD morphological and refractive maps and ID data for eye registration with a great repeatability of a few microns.

Precisio®2 incorporates a patented ultra-thin blue scanning laser slit, to allow a lacrimal film-independent detection of fully registered and validated epithelial maps up to 10.0 mm of corneal diameter.

Precisio®2 is linked to the web-based iVerify® application, to grant an automated and objective debriefing process, to allow clinical follow-up of corneal pathologies, to analyse morphological and refractive corneal surgical outcomes, and to allow surgical follow-up of the customized refractive and therapeutic treatments.

Precisio®2 incorporates a 6D eye tracking sub-system to allow an accurate registration of 60 HD cross-section images acquired in less than 1 sec, thus providing morphological and refractive data of each and every corneal sublayer, including the iris plane, with unmatched accuracy and repeatability.

Thanks to a proprietary Ray-Tracing technology, Precisio®2 provides, the true total corneal power which is fundamental for the process of determination of the corneal Ideal Shape to allow the customization of therapeutic and refractive surgery.

Precisio®2 incorporates a proprietary module to perform a dedicated diagnostic analysis to identify corneal pathologies allowing the differentiation between stable and ectatic diseases.

Brochure Enquire
Key Features

Key Features

Fully automated acquisition, touch screen driven
Voice guided patient auto-positioning 3D eye-tracker synchronized with data system detection
Blue scanning laser micro-slit
Epithelial spatially registered maps
Ergonomic design
Intuitive software interface
Big data web based statistical analysis for custom vision surgery

Technology

Technology

Synchronous stereo high-resolution CMOS tandem cameras granting:

  • Acquisition of over 120.000 data points per each detected surface
  • High speed fully automated acquisition of 60 images in one second
  • 3D synchronous tracking of all six spatial degrees of freedom
  • Certified repeatability of the acquired maps
  • Ocular features mapping for 3D intra-operative registration
  • Ultrathin blue laser slit for high resolution images
  • Optical stop-passing filters to remove parasite lights
  • Automated voice guided system of patient positioning and acquisition 3D motorized chinrest
  • Touch screen monitor and intuitive user interface
  • Realtime exams backup

Clinical Applications

Clinical Applications

  • Custom corneal refractive and therapeutic surgery
  • Morphological and refractive analysis of the anterior segment of the eye
  • Diagnostic analysis and clinical follow up of corneal pathologies
  • Surgical outcomes and surgical follow up for corneal refractive and therapeutic procedures

Technical Specifications

Technical Specifications

Exam procedure:
Full automated voice driven acquisition and validation
Acquired data: 60 frames in 1 second with over 120000 points detected per each detected surface
Accuracy: ≤ 3um in the central 6 mm (diameter)
Field of view: 10mm
Image acquisition system: 2 Gigabit CMOS digital cameras
Eye tracking: 3D synchronous tracking of all six spatial degree of freedom
Slit light source: Ultra-thin blue laser diode
Laser diode slit divergence: ≤ 10% within 3mm depth of field
Weight: 135 kg
Power requirements: 110 ÷ 240Vac, 50-60Hz, 0.9A
Dimensions: 590mm x 485mm x 1565mm (LxWxH)

Exam Outputs

Exam Outputs

  • Elevation maps: anterior, stromal and posterior
  • Thickness map: epithelium, stromal and total
  • Anterior chamber depth and iris maps
  • Ray tracing refractive map: anterior, stromal, posterior and total
  • Axial refractive map: anterior, stromal, posterior and total
  • Tangential refractive map: anterior, stromal, posterior and total
  • Mean power refractive maps: anterior, stromal, posterior and total
  • Refractive aconic fitting: anterior, stromal, posterior and total
  • Corneal morphological repeatability analysis: anterior, posterior and total
  • Corneal refractive repeatability analysis: anterior, posterior and total
  • 6 degrees of freedom eye-tracker display
  • Horizontal and vertical angle K
  • Fixation score
  • Measuring tool
  • Medical record
  • Custom maps display
  • Relevant data point display
  • Diagnostic analysis and clinical follow-up
  • Surgical outcomes and surgical follow-up
